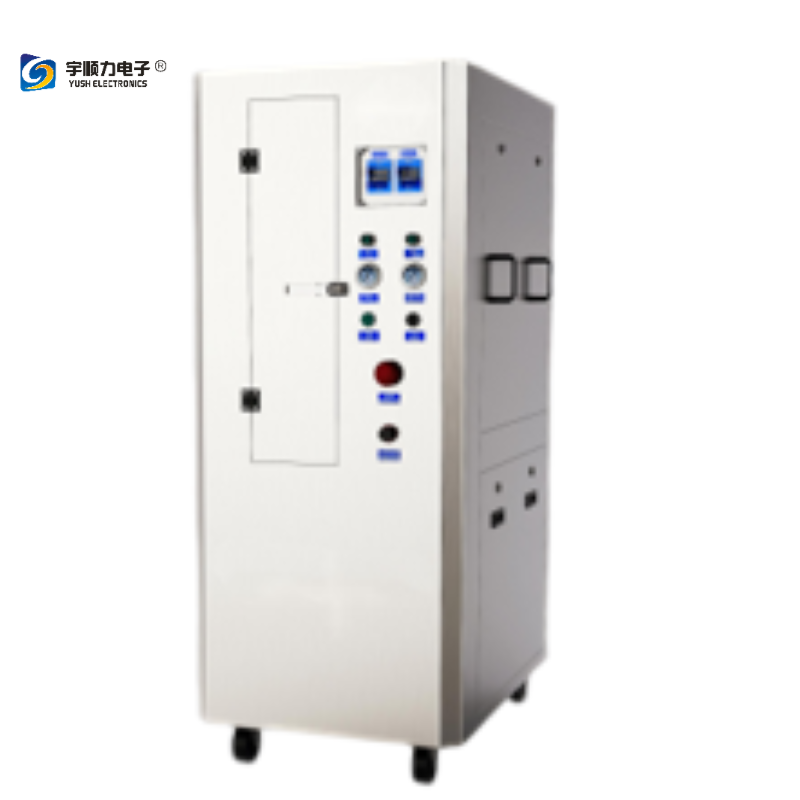

Full pneumatic steel mesh cleaning machine YSL-600 For SMT production line

Technical specification parameter

Applicable steel mesh size


 L750 × W750 × H40(mm) 【 Extra large size to order】
Overall dimension


 L1000*W700*H1730（ mm ）
Maximum volume of liquid tank


 50L
Optimal liquid usage


 40L
Cleaning mode


 360° Rotary double isobaric injection High pressure injection (wash + blow dry)
Cleaning time


 2-4min
Drying time


 2-5min
External air source


 0.4～ 0.6 (Mpa)
Air consumption




 400 ～600( L/Min)
Exhaust port size


 Φ 125× H25(mm)
Filtration system (first level)


 Primary filter element filtration：10㎛ (Filter impurities and labels)
Filtration system (secondary)


 Two-stage filter element filtration：5㎛ (Filter solder paste and rosin particles)
Filtration system (three stages)


 Three-stage filter element filtration：1㎛ (Filter solder paste and rosin particles)
Machine weight


 240KG
Product characteristics

  • All stainless steel body: beautiful, wear resistance, corrosion resistance, in line with environmental requirements and standards;
  •  Full pneumatic operation, no electricity, no fire and other safety risks;
  •  Side wall air intake blow-drying design;
  • User-friendly design: one-button operation and automatic filling and draining function, easy to operate;
  •   Replaceable modular controller and quick-plug design make maintenance easy and  convenient.
  • Two-stage filtration system, low exhaust and S-shaped exhaust duct design: solvent
    recycling, low liquid consumption; Ø High density isobaric double rotating cleaning nozzle, strong cleaning power, does not damage the tension of steel mesh.
  • Systematic integration of global quality control devices to ensure excellent quality, stable  performance and long service life;

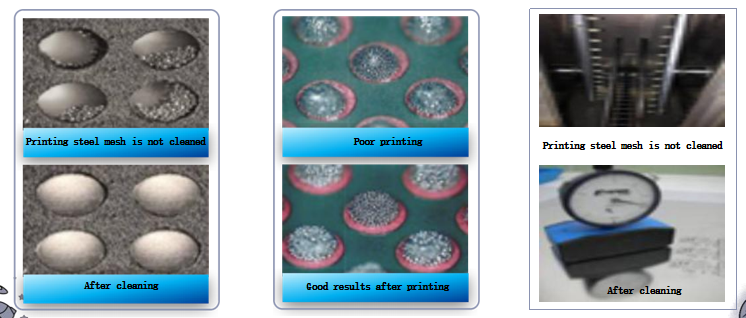

Cleaning instance

Maintenance and maintenance
